Mini L Head - Remote PTZ Camera Head

*Specifications are subject to change without notice.

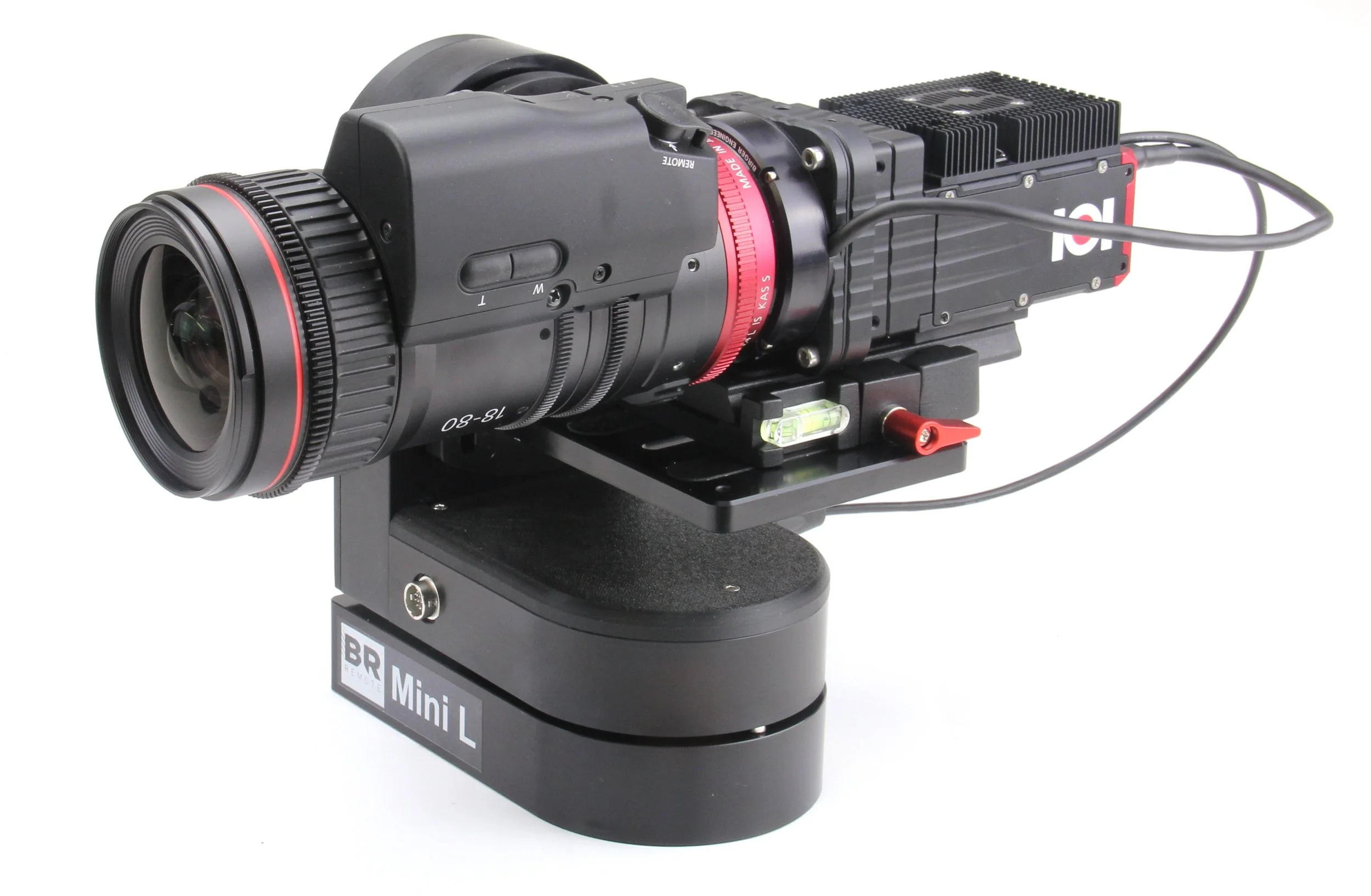

The Mini L Head  is basically a smaller  version of our popular Mini Pro Head but reduced in size and features. It uses the same direct drive technology and is supplied with RS485 and IP connectivity.

It is ideally suited for small ‘box’ type cameras like the Z-Cam and Panasonic cameras.

Connection and control is the same as all our other remote heads via RS485 or via IP.

Metadata (Free-D)

Positional feedback (metadata) is essential for both virtual and augmented reality and any application under computer control.

16bit, Free-D metadata is output continuously on to the IP network which is the most common way of using the data.

Motion Control

Up to 64 pre-set positions can be stored and recalled in the head. (depending on controller) Each position includes, Pan, Tilt, Zoom and Focus positions. Once stored, the positions are saved during power loss.

A major feature of the Mini Pro is that it always does a Motion ControlledProfile Move to each pre-set position. The profile of this move can be specified by the operator using our standard Multi Function Controller.  All axes, Pan, Tilt, Zoom & Focus, will move in the same period of time to the specified position.  A default period is automatically stored but can be adjusted at any time.  Total Time, Ramp Up time, and Ramp Down time can be adjusted by the operator for each position independently.

Full positional motion control can be achieved by using any number of motion control systems.

Power: 12v @ 0.3A quiescent.  4A full drive both axes.
Weight:            2.8kg
Max Load:        5kg
Inputs:             RS485, IP Network.
Outputs:          Free-D onto network

For more information, please download the Mini L Head Brochure. If you would like to get in touch with us, please email admin@br-remote.com or call us on +44 (0) 1590 622 440.
